    LIYI Pendulum Impact Testing Machine For Charpy

    Ask Lasest Price
    Brand Name : LIYI
    Certification : ISO
    Price : $1,000.00 - $2,000.00/Set
    Payment Terms : T/T
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    LIYI Pendulum Impact Testing Machine For Charpy

    LIYI Pendulum Impact Testing Machine For Charpy


    Product Description

    Application:

    This kind of digital charpy impact tester is mainly used to measure the impact toughness of rigid plastic, reinforced nylon,fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials. It is the ideal testing equipment in the chemical industry, scientific research institutes, universities and quality testing departments.


    Product Characteristic:
    A. High-precision intelligent controller equipped with LCD display which you can read the data intuitively and accurately;
    B. China's first carbon fiber lever (It has been patented); it succeeds in doing experiments without shaking involving the impact direction, improving the rigidity of materials, and concentrating impacting strength on the centroid of the pendulum, and using life increases.
    C. Imported high-resolution digital encoders, higher and more stable angle measurement accuracy;
    D. Aerodynamic impact hammer and imported ball bearings greatly reduce mechanical friction losses
    E.Automatic calculation of the final result, 12 sets of the test data can be stored and averaged;
    F. Optional interface of Chinese and English; units ( J / m, KJ / m2, kg-cm / cm, ft-ib / in )can be customized according to customers’ requirements.
    G. Built-in mini printer to print the test data.

    Standards
    ISO179-2000 "plastics - determination of impact strength of the simply supported beam with hard material
    GB/T 21189 < plastic beam and cantilever beam and tensile impact test with a pendulum impact testing machine test >
    GB/T1043-2008 "the hard plastic beam impact test method"
    JB/T8762-1998 plastic beam impact testing machine
    GB/T 18743-18743 "with thermoplastic fluid conveying pipe beam impact test method" (applicable to pipe)
    ISO180-2000 "plastics - determination of hard material cantilever beam impact strength
    GB/T1843-2008 "the hard plastic cantilever beam impact test method"
    JB/T8761-1998 plastic cantilever beam impact testing machine
    ASTM D256-2010 "test method for determination of plastic the IZOD pendulum impact strength,
    GB - T13525-1992 "plastic tensile impact test method for performance"
    Specifications
    Item
    Charpy Impact
    Izod Impact
    Pendulum energy
    1J, 2J, 4J, 5J
    1J, 2.75J, 5.5J
    Pendulum angle
    150°
    Blade angle
    30°
    Blade front angle
    Blade back angle
    10°
    Impact speed
    2.9m/s
    3.5m/s
    Impact center distance
    221mm
    335mm
    Blade filleted radius
    R=2mm±0.5mm
    R=0.8mm±0.2mm
    Energy loss
    0.5J ≤4.0J
    1.0J ≤2.0J
    2.0J ≤1.0J
    ≥4.0J≤0.5J
    2.75J ≤0.06J
    5.5J ≤0.12J
    Pendulum torque
    Pd1J=0.53590Nm
    Pd2J=1.07180Nm Pd4J=2.14359Nm Pd5J=2.67949Nm
    Pd2.75J=1.47372Nm
    Pd5.5J=2.94744Nm
    Print out
    Capacity. Angle, energy, etc.
    Power supply
    AC220V±10% 50HZ

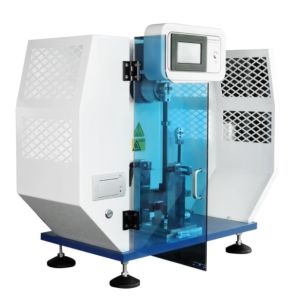

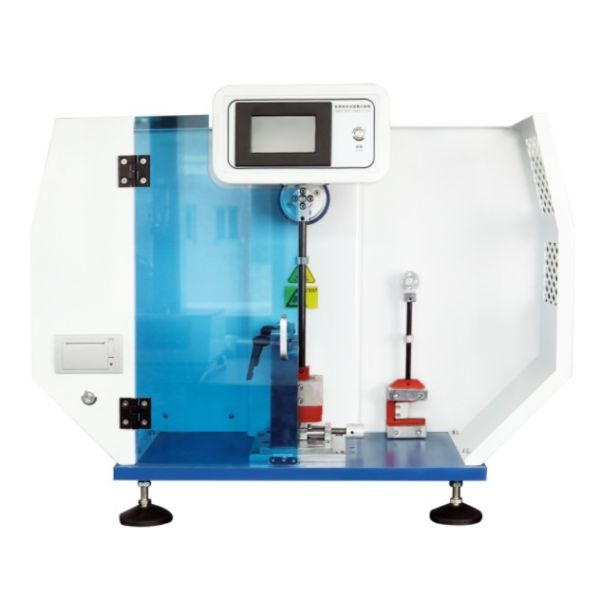

    Reality Show
    LIYI Pendulum Impact Testing Machine For CharpyLIYI Pendulum Impact Testing Machine For Charpy
    LIYI Pendulum Impact Testing Machine For Charpy
    LIYI Pendulum Impact Testing Machine For Charpy
    Company Profile
    Guangdong LIYI Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
    Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.
    Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
    Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
    LIYI Pendulum Impact Testing Machine For Charpy
    FAQ
    1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
    Yes, we are the one of professional and biggest Manufacturer for Customized Industrial Drying Oven, Hot Air Oven, Laboratory Oven in China .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.

    Moreover, If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

    2. What’s the delivery term?
    For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

    3. Do you accept customization service? Can I have my logo on the machine?
    Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

    4.How can I install and use the machine?
    Once you have ordered the testing machines from us, we will send you the operation video in English version through Email.
    Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
